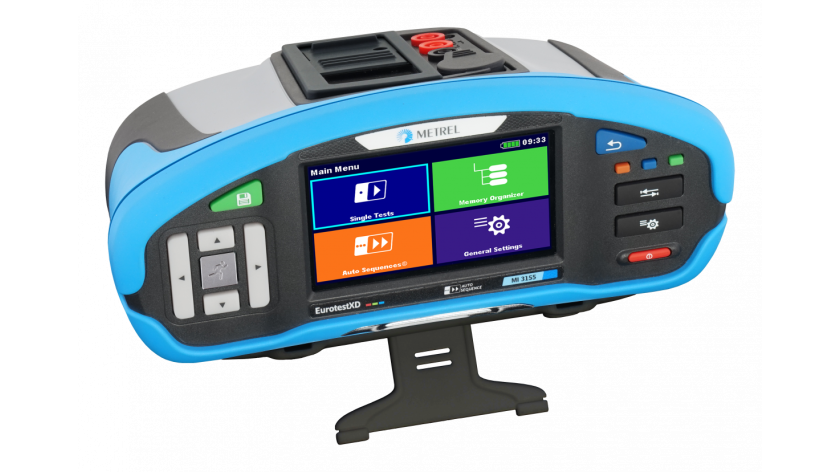

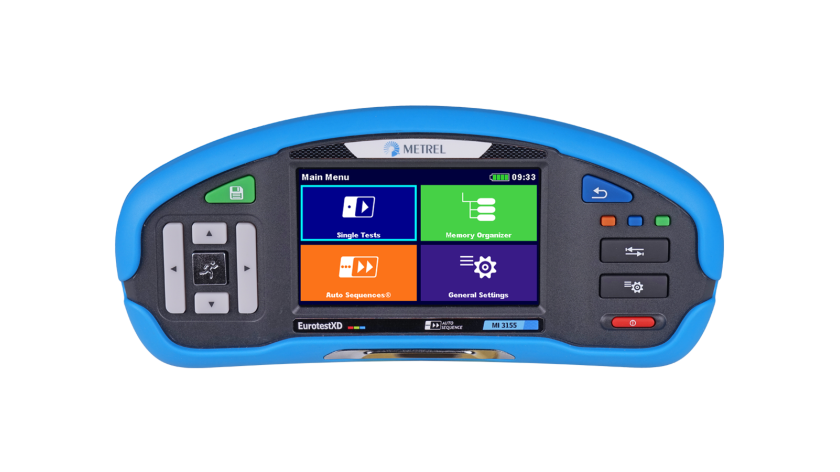

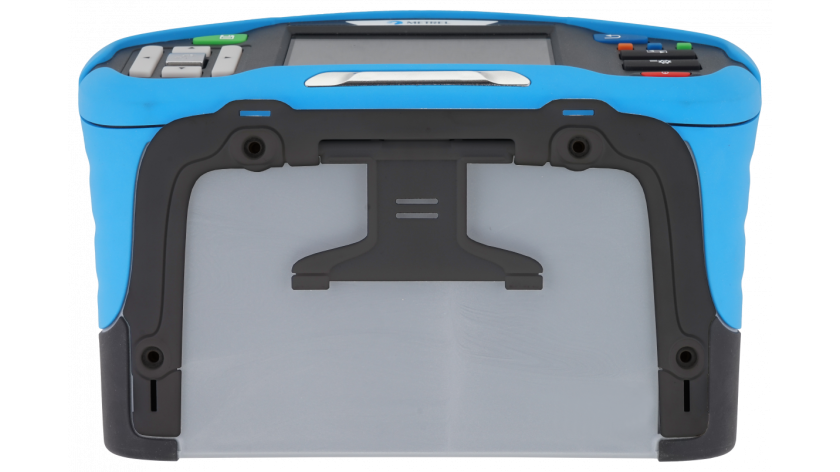

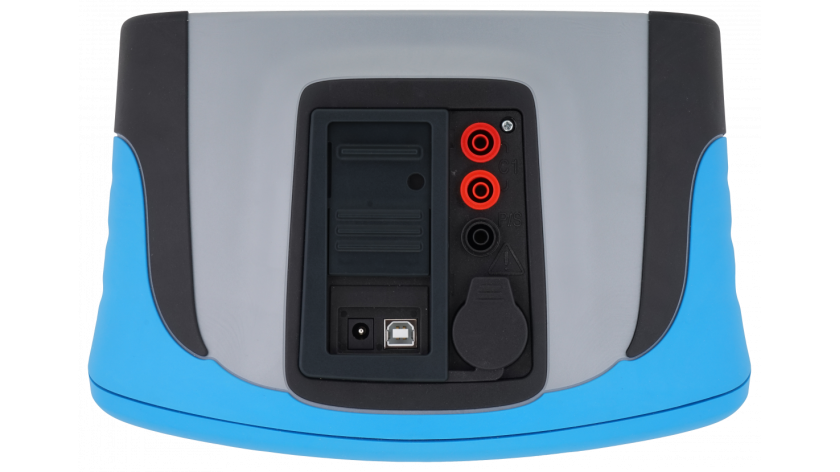

MI 3155 EurotestXD Empfehlen
Multifunktionale Prüfgeräte
MI 3155 EurotestXD ist das neueste Flaggschiff von Metrels fortschrittlichsten Installationsprüfgeräten und ist speziell für Industrieanwendungen ausgelegt. Das ergonomische Design wie auch das intuitive Bedienkonzept, mit seiner einzigartigen Speicherstruktur, bilden den Unterschied zu anderen Geräten. Voll programmierbare AUTO-Sequenzen, und der große farbige Touchscreen machen das Arbeiten schnell und effizient. Das Prüfgerät arbeitet nach den gängigen Prüfstandards, bietet aber auch eine Isolationsprüfung mit bis zu 1000V DC, die Messung der Entladezeit und eine extrem schnelle Impedanzprüfung. Ergänzend zu denn Messungen können nun Sicht- und Funktionsprüfungen im EurotestXD ausgefüllt werden.

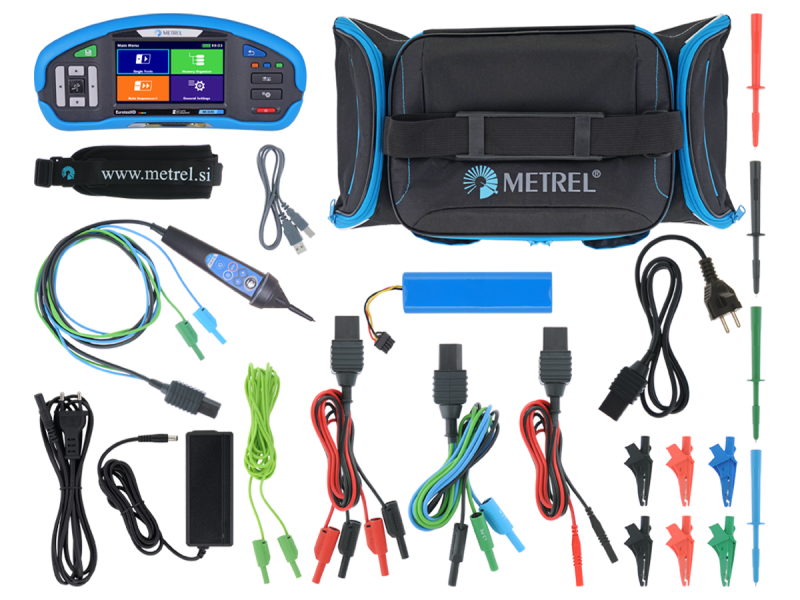

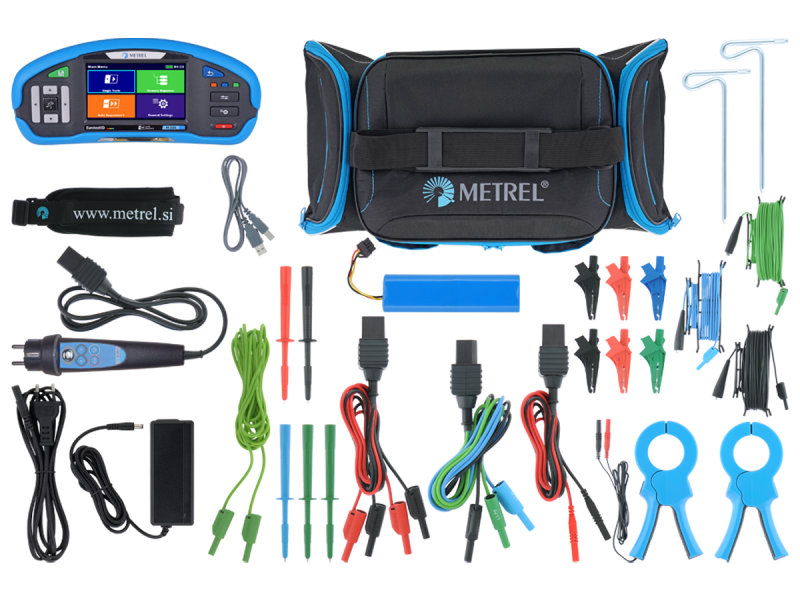

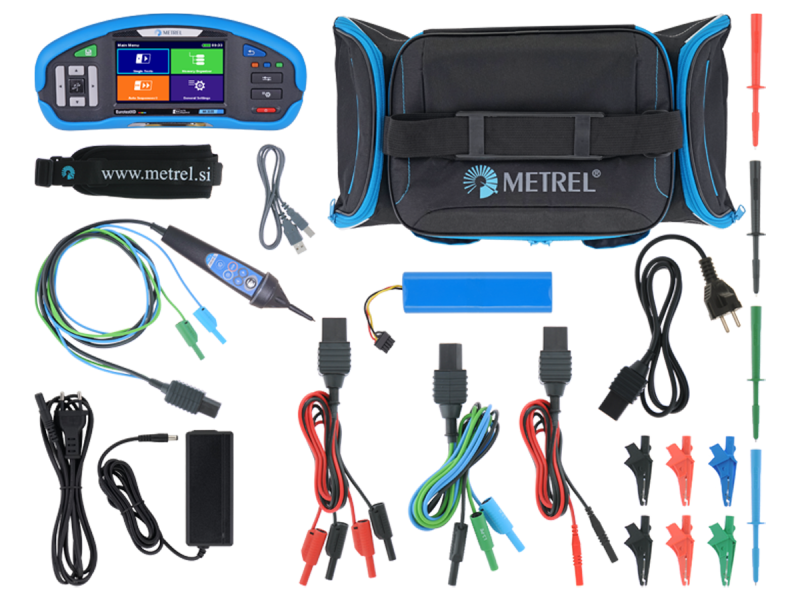

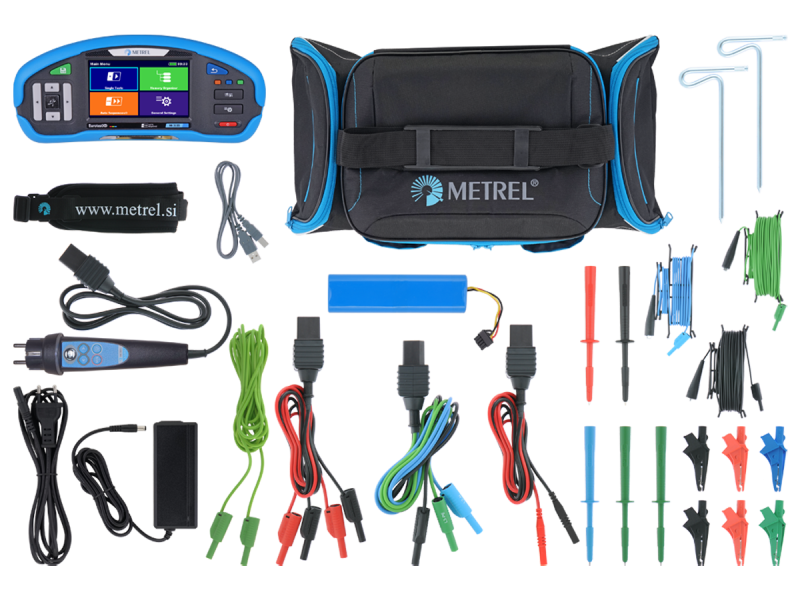

Sets
nach Normen
Gebäude-NS-Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 60364 Electrical Installations for Buildings series
- IEC/EN 60364-6 Electrical Installations for Buildings - Verification
- IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
- IEC/EN 60755 General safety requirements for residual current operated protective devices
- IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
- IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
- IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
- IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
- IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
- IEC/EN 61557-11 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 11: Effectiveness of residual current monitors (RCM) in TT, TN and IT systems
- IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
- VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- AS / NZ 3017 Electrical installations – Verification guidelines
- AS / NZ 3018 Electrical installations - Domestic installations
- BS 7671 IEE Wiring Regulations (18th edition)
- CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current
Erdung und Blitzschutz
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
- IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding
Elektrische Energetik
- EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
- IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
- IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers
Erdung
- EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
- HD 637 S1 Power installations exceeding 1 kV a.c.
- IEEE Guide for Safety in AC Substation Grounding
- IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
- IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
- IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
- EN 50522 Earthing of power installations exceeding 1 000 V a.c.
- RAT 2008 Spanish high-voltage regulation
Power quality
- PQA Competences: Power Quality Analyzing & Reporting
- IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 62271 High-voltage switchgear and controlgear - series
- IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
- IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers
Maschinensicherheit
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery
Elektrische Sicherheit von mobilen Einheiten
- eMOB Competences: Electrical LV Installations in Mobile Units Safety
- IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
Ausrüstung für die Versorgung von Elektrofahrzeugen
- EVSE Competences: Electrical Vehicle Supply Equipment Safety
- IEC/EN 61851 Electric vehicle conductive charging system
- IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
- IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles
Installationen von medizinischen Räumen und Operationssälen
- MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
- IEC/EN 60364-7-710 Requirements for special installations or locations – Medical Location
Gerätesicherheit gegenüber dem Benutzer
- IEC 61000-6-5:2015 Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
EMV-Sicherheit
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Funktionen
Messfunktionen
- Niederohmigkeit des Schutzleiters mit 200 mA DC Prüfstrom und Polaritätswechsel;
- PE-Durchgangsprüfung mit 7 mA Strom ohne RCD-Auslösung;
- RCD-Prüfung: allgemein und selektiv;
- Typ AC, A, F, B, B +;
- MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S;
- Leistungs- und THD-Messung (bis zur 12. Harmonischen);
- PE-Wiederstandsmessung über 3-Leiter bei Netzspannung (RPE-Funktion);
- Isolations-Autotest zwischen allen Leitern L-N, N-PE und L-PE (R ISO ALL-Funktion);
- 4-Leiter-Widerstandsmessung;
- TRMS-Leck- und Lastströme (Option);
- Isolationswiderstand von 50V DC bis 2500 V DC sowie PI, DAR-Berechnung;
- Varistortest;
- 2- und 3-Leiter-Schleifenimpedanz (L-PE) Messung ohne RCD-Auslösung;
- Berührungsspannungsmessung mit externer P / S-Sonde;
- 2-Leiter- und 3-Leiter-Leitungsimpedanz (L-L, L-N) Messung;
- 1-phasige / 3-phasige TRMS-Spannung und Frequenzmessungen;
- Line-, Loop- und RCD-Messungen im Frequenzbereich 16 ... 400 Hz;
- Phasenfolge;
- Vierdraht-Impedanzmessung an Transformatoren;
- Hochgenaue Kurzschlussstrombewertung mit berechnetem Hotfaktor;
- Erdungswiderstand (3-Draht und 2-Zangen Methode);
- Spezifischer Erdwiderstand über Ro-Adapter (Optional);
- Erster Fehlerleckstrom (ISFL);
- Prüfung von Isolationsüberwachungsgeräten (IMDs);
- Messung der Entladezeit;
- Messung der Beleuchtungstärke (Optional);
- hoch auflösende Schleifenimpedanz (mΩ) (Option);
- Ladesäulenprüfung (EVSE) über Adapter
- Leitungssucher optional;
- QR- und / oder Barcode-Scanner-Unterstützung (Option).
Wichtigste Funktionen
- Frei Programmierbare AUTO-Sequenzen.
- Vordefiniertes AUTO-SEQUENZEN.
- Vordefinierte automatische Prüfungen:
Auto TT (U, Zln, Zs, Uc);
Auto TN/RCD (U, Zln, Zs, Rpe);
Auto TN (U, Zln, Zlpe, Rpe);
Auto IT (U, Zln, Isc, Isfl, IMD). - Funktionsprüfungen.
- Sichtprüfungen.
- Benutzerdefinierten Sicht- und Funktionsprüfungen in AUTOSEQUENZEN.
- EVSE AUTOSEQUENZEN und Funktionsprüfungen.
- Sicht- und Funktionsprüfungen an Maschinen.
- Integrierte Hilfebildschirme.
- Eingebaute Sicherungstabellen zur automatischen Auswertung des Leitungs-/ Schleifen-Impedanz-Ergebnisses.
- Überwachung aller 3 Spannungen in Echtzeit.
- Automatische Polaritätsumkehr bei Durchgangsprüfung.
- Automatisiertes RCD-Prüfverfahren (RCD AUTO).
- Automatisches Impedanztestverfahren (Z AUTO).
- Messfunktions-Filterung je nach ausgewählter Bereichsgruppe.
- Standardmäßig eingebautes Ladegerät sowie wiederaufladbare Akkus im Standardzubehör.
- BT-Kommunikation mit PC, Android-Tablet und Smartphones.
- PC SW Metrel ES-Manager PRO Lizenz (P 1101) ermöglicht Struktur-, AUTO SEQUENZ- und Berichtserstellung sowie Daten-Up/ Download.
- Optionale aMESM Android App Lizenz (A 1522) ermöglicht Struktur und Berichterstellung, Daten Up/Download.
Technische Daten
- Abmessungen (l x b x h): 252 x 111 x 165 mm.
- Gewicht (ohne Zubehör): 1.78 kg.
Spezifikationen
Software
Downloads
Dateityp | Dateiname | Sprache | Version | Datum | Hinweise | Dateityp | Dateigröße | Online | Download |
---|---|---|---|---|---|---|---|---|---|
Datasheet | MI 3155 EurotestXD | de | 2022 | 08.09.2022 | 1.57 MB | ||||
Datasheet | Ion SDK and Black-Box protocol | de | 2020 | 01.03.2021 | Brochure | 845.68 KB | |||
Manual | MI 3155 EurotestXD | de | 1.12.16 | 14.02.2023 | 20 752 798 | 8.44 MB | Login | ||
Manual | Illuminance | de | 1.1.1. | 15.05.2023 | 20753331 | 422.26 KB | Login | ||
DoC | EU Declaration of Conformity | Multi-Language | 10.08.2021 | QR code | Externer Link | Unbekannt | |||
PC Software | SW 1201 Metrel Electrical Safety Manager (MESM) | Multi-Language | 1.20.1.914 | 31.05.2023 | Readme | zip | 354.23 MB | Login | |
Android | SW 1304 aMESM Android | en | 04.01.2021 | QR code | Externer Link | Unbekannt |
