MI 3144 Euro Z 800 V Empfehlen

Weitere Messgeräte / Adapter / Zubehörteile

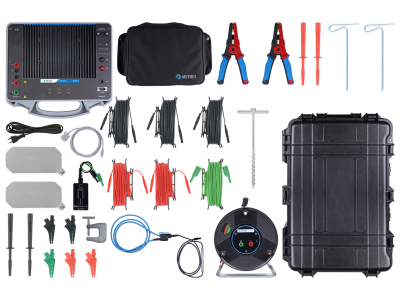

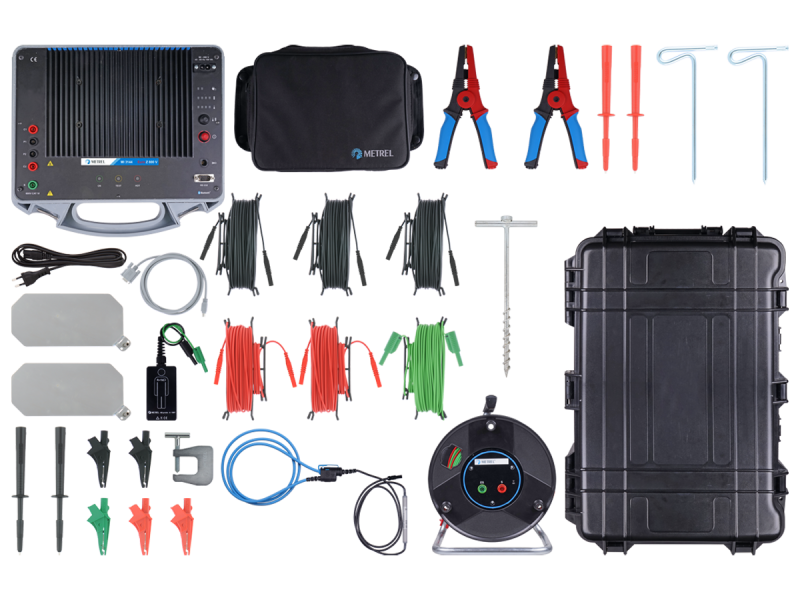

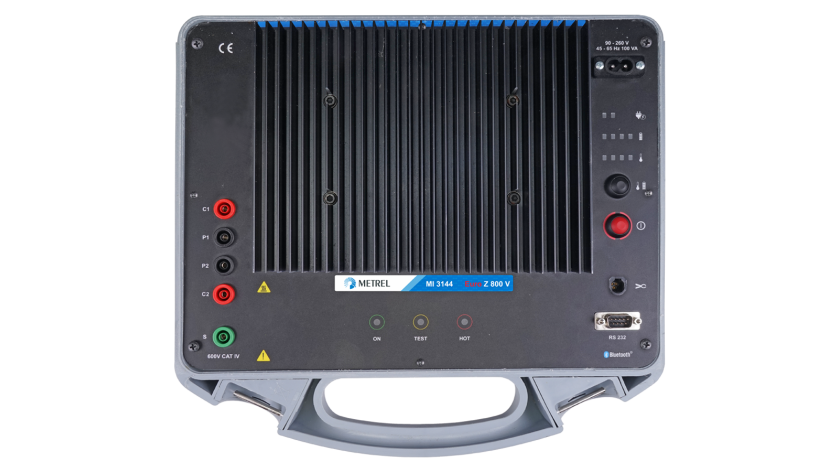

Das MI 3144 Euro Z 800 V ist ein Prüfgerät für komplexe Impedanzmessungen mit einer ausgezeichneten IP-Schutzklasse. Über die Android App aMESM oder bestimmte Eurotest Prüfgeräte kann es ferngesteuert werden. Somit ist es bei Fehlern der Schutzeinrichtungen an Transformatoren und anderen Hochspannungsgeräten sicherer. Mit seinen hochpräzisen Leitungs- und Schleifenimpedanz Messungen in AC und DC Stromkreisen, der Berührungsspannungsmessung, und der dR 330A- Widerstandsprüfung ist es ideal für industrielle Anwendungen. Zusätzliche Prüfungen von Batterien und ELR ergänzen den Leistungsumfang.

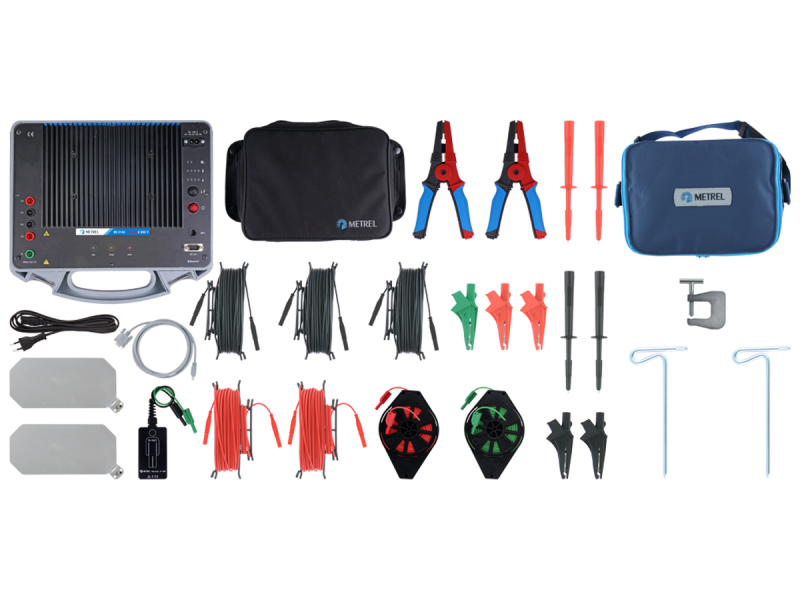

Sets

nach Normen

Gebäude-NS-Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance

Erdung und Blitzschutz

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series

Elektrische Energetik

  • EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
  • IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
  • IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers

Erdung

  • EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
  • HD 637 S1 Power installations exceeding 1 kV a.c.
  • IEEE Guide for Safety in AC Substation Grounding
  • IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
  • IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
  • IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
  • EN 50522 Earthing of power installations exceeding 1 000 V a.c.
  • RAT 2008 Spanish high-voltage regulation

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 62271 High-voltage switchgear and controlgear - series
  • IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Sicherheit von tragbaren Geräten

  • IEC/EN 60974 Arc welding equipment series
  • IEC/EN 60974-2 Arc welding equipment - Part 2: Liquid cooling systems

Funktionen

Wichtigste Funktionen

  • Hoch präzise 4 - Leiter 300A Z Line und Z Loop Impedanzmessung;
  • Hi-Range Impedanzmessungen in 800 V / 16 ... 420 Hz AC Netzen;
  • DC Quellen und Leitungswiderstandsmessungen in 3 ... 260 V DC Netzen;
  • Hochstrom dR 300A 4 - Leiter Widerstandsmessung und Spannungsabfällen;
  • Erdschlussrelais (ELR) Prüfung- Auslösezeit und Auslösestrom;
  • ELR unterstützte Typen AC, A, B;
  • Erdschluss Analyse mit Kontakt-, Berührungs- und Schrittspannung;
  • Voltmeter für partielle Ergebnisse;
  • Hochstrom-Erdungsmessverfahren mit einer Zange (Flexibel & Eisen);
  • Wählbare Prüflast (16.6 % bis 100 %);
  • Verbesserte thermische Leistung;
  • Tragbares Batterie (Li-Ion) oder netzbetriebenes Prüfgerät;
  • IP Schutzklasse: IP 65 (Gehäuse geschlossen), IP 54 (Gehäuse offen).
  • CAT IV 600V (3000 m) Sicherheitskategorie;
  • Bluetooth Kommunikation;
  • Black-Box Ausführung (über ein Android Gerät ferngesteuert).

Technische Daten

  • Abmessungen (B x H x T): 360 mm x 160 mm x 330 mm
  • Gewicht (ohne Zubehör): 7 kg

Spezifikationen

Downloads

Dateityp Dateiname Sprache Version Datum Hinweise Dateityp Dateigröße Online Download
Datasheet MI 3144 Euro Z 800V de 2022 15.09.2022 Single leaflets pdf 1.04 MB
Datasheet MI 3144 Euro Z 800V ąnd MI 3143 Euro Z 440V de 2019 11.10.2019 Brochure pdf 15.29 MB
Datasheet Ion SDK and Black-Box protocol de 2020 01.03.2021 Brochure pdf 845.68 KB
Manual MI 3144 Euro Z 800V de 1.5.10. 11.11.2022 20 752 923 pdf 1.63 MB Login
PC Software SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.20.1.914 31.05.2023 Readme zip 354.23 MB Login
Android SW 1304 aMESM Android en 04.01.2021 QR code Externer Link Unbekannt
