MI 3154 EurotestXDs Nur in Deutschland erhältlich

Multifunktionale Prüfgeräte

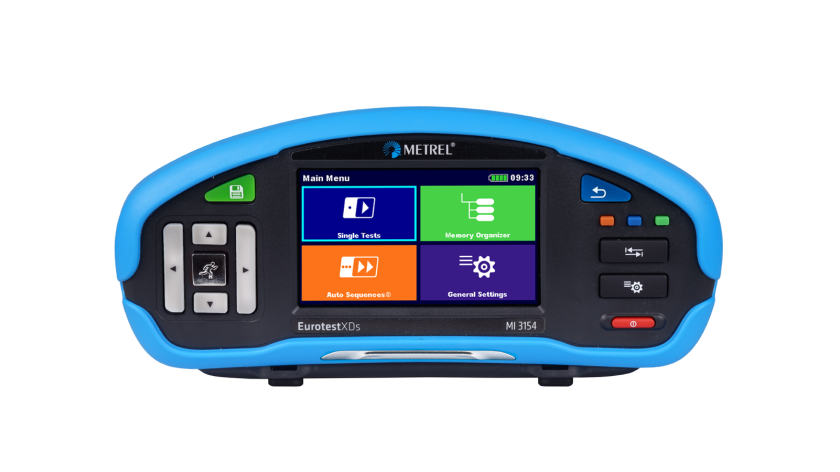

Das Metrel MI 3154 EurotestXDs Prüfgerät ist eine verbesserte Version des MI 3152 EurotestXC Modells. Wie das MI 3152 verfügt es über einen farbigen Touchscreen, Bluetooth-Konnektivität und die Möglichkeit, eine Vielzahl von Metrel-Adaptern anzuschließen. Die bereits bekannten Funktionen, wie die vollständige Prüfung der Anlagensicherheit nach IEC/EN 61557 und die AUTOSEQUENCE- Prüfung von TN-, TT- und IT- Erdungssystemen, sind in ein robusteres Gehäuse mit Li-Ionen- Akkus für den Dauereinsatz in unwirtlicher Umgebung integriert. Eine breite Palette von Funktionen wird angeboten: von der Online- Spannungsüberwachung, Phasenfolgeprüfung, Varistorprüfung, Erdungswiderstandsmessung, Beleuchtungsstärkenmessung und TRMS-Strommessung bis hin zu RCD-Prüfungen, Leitungs- und Schleifenimpedanzprüfungen, spezifischen Erdungswiderstandsmessungen, ISFL-Messungen, den IMD-Tests und natürlich der Prüfung von Mode 3 EVSE mit einem A 1532 EVSE-Adapter.

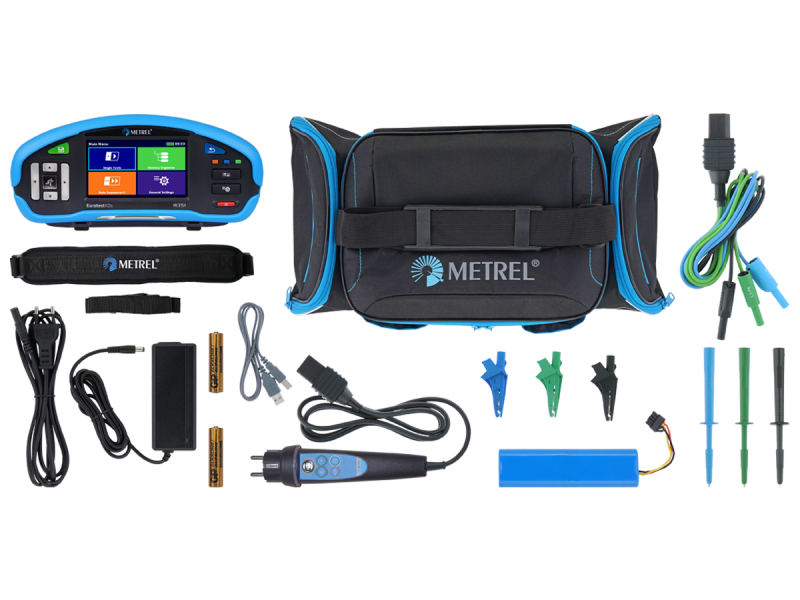

Sets

nach Normen

Gebäude-NS-Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • AS / NZ 3018 Electrical installations - Domestic installations
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Erdung und Blitzschutz

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 62271 High-voltage switchgear and controlgear - series
  • IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Elektrische Sicherheit von mobilen Einheiten

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles

Ausrüstung für die Versorgung von Elektrofahrzeugen

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety
  • IEC/EN 61851 Electric vehicle conductive charging system
  • IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
  • IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles

Installationen von medizinischen Räumen und Operationssälen

  • MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
  • IEC/EN 60364-7-710 Requirements for special installations or locations – Medical Location

Gerätesicherheit gegenüber dem Benutzer

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

EMV-Sicherheit

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Funktionen

Messfunktionen

  • Isolationswiderstand bei Gleichspannung von 50 V bis 1000 V;
  • Durchgang von PE-Leitern mit 200 mA DC Prüfstrom mit Polaritätswechsel;
  • Durchgang von PE-Leitern mit 7 mA Prüfstrom mit Polaritätswechsel;
  • Line/Schleifen Impedanz auch in einer Funktion kombiniert Z AUTO;
  • Schleifenimpedanz mit Trip Lock RCD-Funktion;
  • TRMS-Spannungs- und Frequenzmessungen;
  • Phasenfolge;
    Leistungs- und THD Messung (bis zur 12. Harmonie)
  • RCD Prüfung (allgmein und selektiv, Typ AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
  • Erdungswiderstand (3 Draht- und 2-Klemmen Verfahren);
  • Spezifischer Erdungswiderstand mit Ro- Adapter (Option);
  • TRMS Leck- und Lastströme (Option);
  • Erster Fehlerableitstrom (ISFL);
  • Prüfung von Isolationsüberwachungsgeräten (IMDs);
  • Varistor-Test;
  • Beleuchtung (Option);
  • Hohe Auflösung Schleifenimpedanz (mΩ) (Option);
  • EVSE AUTO SEQUENCEs und Funktionskontrollen;
  • Ermitteln der Lage der Kabel (Option);
  • Unterstützung von QR- und/oder Barcode- Scannern (Option);
  • EVSESupport (Versorgungsausrüstung für Elektrofahrzeuge) (Option).

Wichtigste Funktionen

  • Vordefinierte profilabhängige AUTO SEQUENCEn.
  • Vordefinierte automatische Tests: Auto TT (U, Zln, Zs, Uc); Auto TN/RCD (U, Zln, Zs, Rpe); Auto TN (U, Zln, Zlpe, Rpe); Auto IT (U, Zln, Isc, Isfl, IMD); EVSE.
  • Integrierte Hilfe-Fenster zum Nachschlagen vor Ort.
  • Integrierte Sicherungstabellen zum automatischen Auswerten der Leitungs-/Schleifenimpedanz-Ergebnisse.
  • Hochauflösender farbiger Touchscreen, 4,3" TFT.
  • EVSE AUTO SEQUENCEs und Funktionskontrollen.
  • Überwachung aller drei Spannungen in Echtzeit.
  • Automatische Polaritätsumkehr bei Durchgangsprüfung.
  • Automatisiertes RCD-Prüfverfahren (RCD AUTO).
  • Automatisiertes Impedenzprüfverfahren (Z AUTO).
  • Funktionelle Inspektionen
  • Messwertfilterung anhand der ausgewählten Bereichsgruppe.
  • Li-Ion Batterien mit eingebautem Ladegerät als Standardzubehör.
  • BT Kommunikation with PC, Android Tablets and Smartphones über integrierte BT Funktion.
  • PC SW Metrel ES Manager (Struktur- und Berichterstellung, Daten Upload/Download).
  • Optionale aMESM Android APP (Struktur- und Berichterstellung, Daten Upload/Download).

Technische Daten

  • Abmessungen (l x b x h): 252 x 111 x 165 mm.
  • Gewicht (ohne Zubehör): 1.76 kg

Spezifikationen

Downloads

Dateityp Dateiname Sprache Version Datum Hinweise Dateityp Dateigröße Online Download
Datasheet MI 3154 EurotestXDs de 2022 08.09.2022 pdf 367.16 KB
Manual MI 3154 EurotestXDs de 1.3.6 14.02.2023 20753244 pdf 7.51 MB Login
DoC EU Declaration of Conformity Multi-Language 10.08.2021 QR code Externer Link Unbekannt
PC Software SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.20.1.914 31.05.2023 Readme zip 354.23 MB Login
Android SW 1304 aMESM Android en 04.01.2021 QR code Externer Link Unbekannt
Images MI 3154 EurotestXDs Multi-Language 01.10.2021 zip 305.72 MB Login
