MD 9070 Digital Multimeter für Isolations- / Durchgangsprüfung Empfehlen

Digitale Multimeter

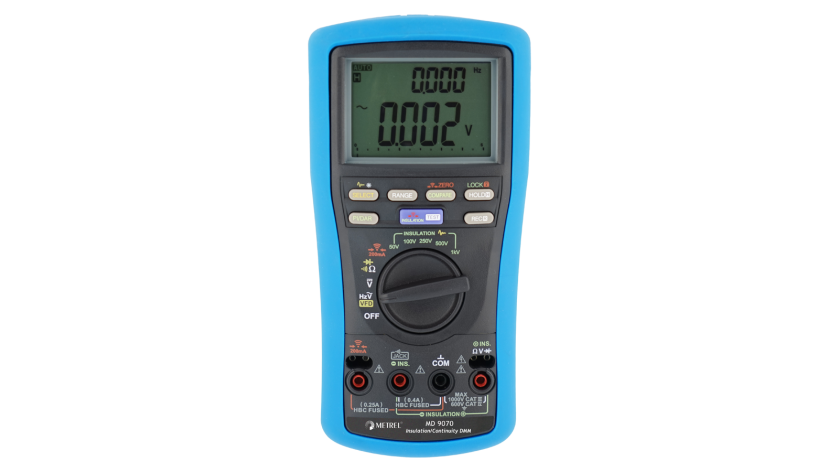

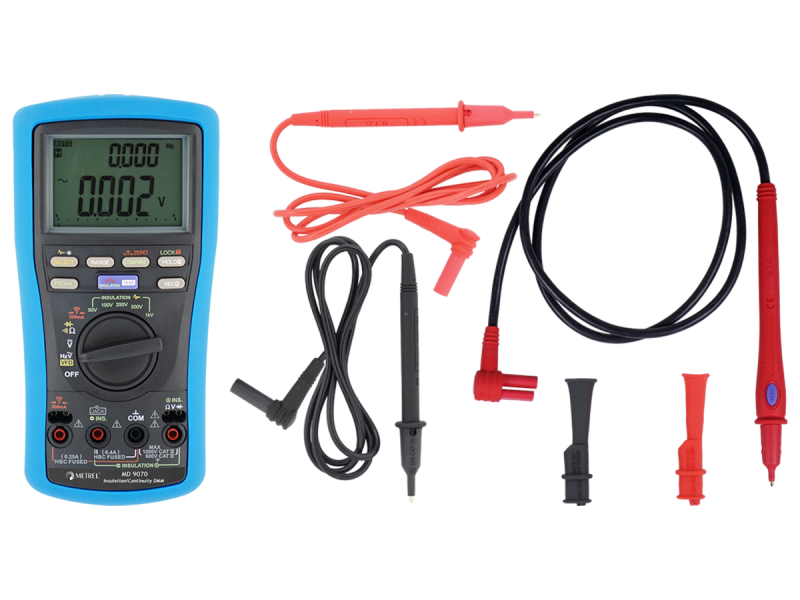

Das MD 9070 ist ein präzises Multimeter zur Isolations- und Durchgangsmessung, das in einer CAT IV / 600V-Umgebung verwendet werden kann. Auf dem Dual-Digital-Display werden dem Bediener alle erforderlichen Daten angezeigt. Die Größe ist so gewählt, dass es mit einer Hand bedient werden kann. Es ist mit einer eingebauten VFD-Funktion ausgestattet, die es ermöglicht mit dem Gerät die tatsächlichen Effektivwerte in Übereinstimmung mit Frequenz zu messen, Durchführung von PI / DAR Messungen und Diodenprüfungen. Das MD 9070 verfügt über eine breite Palette von zusätzlichen Funktionen, einschließlich der Daten-Hold-Funktion, Speicher, Min / Max, Differenz, automatische Abschaltung, automatische Bereichswahl, Frequenzfilter , Sperrfunktion, Reset, Relativ-Funktion und vieles mehr.

Sets

nach Normen

Gebäude-NS-Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance

Erdung und Blitzschutz

  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Elektrische Sicherheit von mobilen Einheiten

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
  • UNECE R 100 Einheitliche Bestimmungen zur Zulassung von Fahrzeugen hinsichtlich spezifischer Anforderungen an den elektrischen Antriebsstrang [2015/505]

Gerätesicherheit gegenüber dem Benutzer

  • IEC/EN 55022 Information technology equipment - Radio disturbance characteristics
  • IEC/EN 61000 Electromagnetic compatibility (EMC) series
  • IEC/EN 61000-3-2 Electromagnetic compatibility (EMC) - Part 3-2 - Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
  • IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
  • IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
  • IEC/EN 61000-4-3 Electromagnetic compatibility (EMC)- Part 4-3: Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test
  • IEC/EN 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst immunity test
  • IEC/EN 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test
  • IEC/EN 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields
  • IEC/EN 61000-4-8 Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field immunity test
  • IEC/EN 61000-4-11 Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity tests
  • Die Niederspannungsrichtlinie NSR 2006/95/EG Elektrische Geräte, die für die Verwendung innerhalb bestimmter Spannungsgrenzen ausgelegt sind
  • Richtlinie EMV 2004/108/EG zur elektromagnetischen Verträglichkeit
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMV-Sicherheit

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Funktionen

Messfunktionen

  • TRMS Messung;
  • Isolationswiderstandsmessung bis 1000V;
  • Durchgangsprüfung;
  • Widerstandsmessung;
  • Diodenprüfung;
  • Netzfrequenz -Messung.

Wichtigste Funktionen

  • TRMS:für genaue Messungen sinusförmiger und nicht sinusförmiger Signale.
  • PI/DAR Funktion.
  • Die VFD -Funktion ermöglicht es mit dem Gerät echte Werte in Übereinstimmung mit der Frequenz zu messen.
  • Automatische Bereichseinstellung.
  • Relative Null zum Vergleichen der Differenz zwischen den Signalen, oder zum Entfernen von Hintergrundrauschen.
  • Min/Max/Mittelwert Funktion.
  • Die Daten-Hold friert die Anzeige zum späteren Betrachten ein.
  • CAT IV / 600 V und CAT III / 1000 V Überspannungskategorien.
  • Hintergrundbeleuchtung für Arbeiten in dunklen Umgebungen.

Technische Daten

  • Dimensions (l x b x h): 208 x 103 x 64,5 mm mit Tasche.
  • Mass (without accessories): 635 g mit Tasche.

Spezifikationen

Downloads

Dateityp Dateiname Sprache Version Datum Hinweise Dateityp Dateigröße Online Download
Datasheet MD 9070 Digitalmultimeter de 1.0 24.01.2017 pdf 381.74 KB
Manual MD 9070 Insulation / Continuity Digital Multimeter Multi-Language 1.3.3 09.09.2022 20 752 588 pdf 43.84 MB Login
DoC EU Declaration of Conformity Multi-Language 10.08.2021 QR code Externer Link Unbekannt
